Why Is the LiftMaster Chain Not Moving?
When your LiftMaster garage door opener hums, clicks, or lights up but the chain doesn’t budge, the motor is getting power — the problem is somewhere between the motor and the chain drive itself. This is a specific failure pattern, and each cause points to a different fix.
The most common reasons are a disengaged trolley (the red emergency cord), a broken or stretched chain, a worn drive sprocket, or a seized motor gear. Each one has a different repair cost and difficulty level.
This guide walks through every cause in order of likelihood, so you can fix the right thing the first time.
Short Answer: If your LiftMaster chain isn’t moving, check the red emergency release cord first — it may have disengaged the trolley from the chain. If that’s fine, the chain may be broken, too loose, or the drive sprocket or motor gear may be worn out. Most fixes cost $10–$80 and take under an hour.
Step 1: Check the Emergency Release First
Before anything else, check the red emergency release cord hanging from the trolley carriage. This cord disconnects the trolley from the chain so you can open the door manually during a power outage.
If someone pulled that cord — intentionally or by accident — the chain will move freely when the opener runs, but the door won’t. The trolley is no longer attached to the chain drive.
To re-engage it: pull the red cord toward the door (not down), then press the wall button or remote. The trolley should click back onto the chain automatically as the opener runs. If you hear a click and the door moves, you’re done.
This fixes the problem about 30% of the time. It costs nothing and takes 60 seconds.

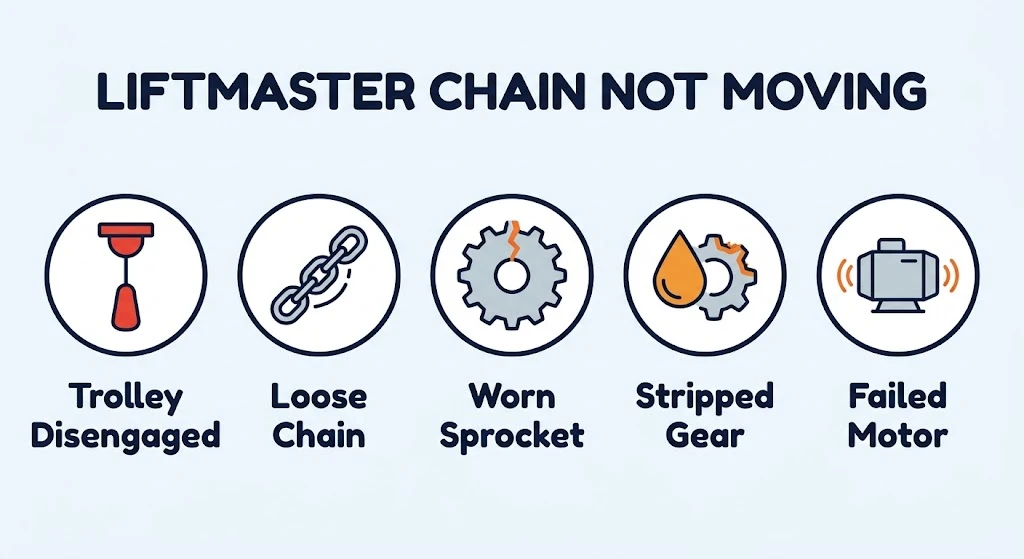

Common Causes: LiftMaster Chain Not Moving
| Cause | Symptoms | DIY Suitability | Safety Risk | Repair Cost |
|---|---|---|---|---|
| Trolley disengaged | Motor runs, door doesn’t move | Yes — easy | Low | $0 |
| Chain too loose / jumped sprocket | Chain sags, slips, or rattles | Yes | Low | $0–$20 |
| Broken chain | Visible gap in chain, loud snap noise | Yes | Low | $15–$40 |
| Worn drive sprocket | Chain slips under load, grinding sound | Yes | Medium | $20–$60 |
| Stripped motor gear | Motor hums, no chain movement at all | Yes | Medium | $20–$80 |
| Failed motor | No hum, no movement, unit is silent | No — call a pro | High | $150–$400+ |

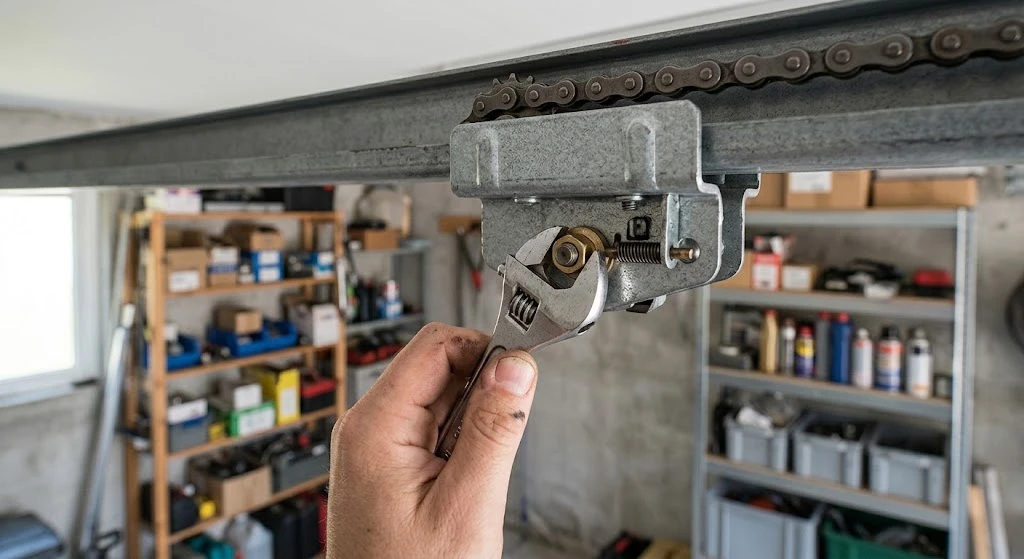

How to Inspect and Adjust a Loose LiftMaster Chain
A chain that sags more than half an inch below the rail will slip off the sprocket under load. LiftMaster specifies the chain should have about ½ inch of slack — measured at the midpoint of the rail — for proper operation.
To tighten it:
- Unplug the opener from the outlet.
- Locate the adjustment bolt on the trolley carriage — it’s the threaded rod running through the front of the trolley.
- Turn the outer nut clockwise to tighten the chain. A quarter-turn at a time is enough.
- Check slack at the midpoint. Stop when you have ½ inch of sag.
- Tighten the inner jam nut to lock the adjustment in place.
- Plug back in and test.
Don’t overtighten. A chain with zero slack binds the sprocket and wears both faster. ½ inch is the sweet spot for all standard LiftMaster chain drive models.
How to Replace a Broken or Worn LiftMaster Chain
If the chain is visibly broken — you’ll see a gap or the chain hanging loose — it needs replacement, not adjustment. The same applies if the chain links are stretched or kinked beyond normal wear.
LiftMaster chain drive openers use standard #41 or #50 roller chain, the same type used on bicycles and light industrial equipment. Replacement chain runs $15–$35 on Amazon and at most hardware stores.
Search Amazon for #41 LiftMaster replacement chain to find compatible options for your model.
Replacing the chain takes about 30–45 minutes. You’ll need to remove the trolley assembly, thread the new chain through the rail, connect the ends with a master link, and re-tension to ½ inch slack. Your owner’s manual shows the exact chain routing for your model.
How to Replace the LiftMaster Drive Sprocket
The drive sprocket is the toothed gear that the chain wraps around at the motor end of the rail. Over time — typically after 10,000–15,000 cycles — the teeth wear down and the chain starts slipping even at correct tension.
Signs of a worn sprocket: the chain slips under load (when the door is heavy or moving against resistance) but tracks fine when running free. You may also hear a rhythmic skipping sound as the chain jumps teeth.
LiftMaster sells sprocket and drive gear kits specific to each model. Search your model number and “sprocket kit” — expect to pay $20–$50. The repair takes about an hour and requires removing the chain, the motor cover, and the old sprocket assembly.
This is a moderate DIY job. You don’t need special tools, but you do need to be comfortable disassembling the motor head.

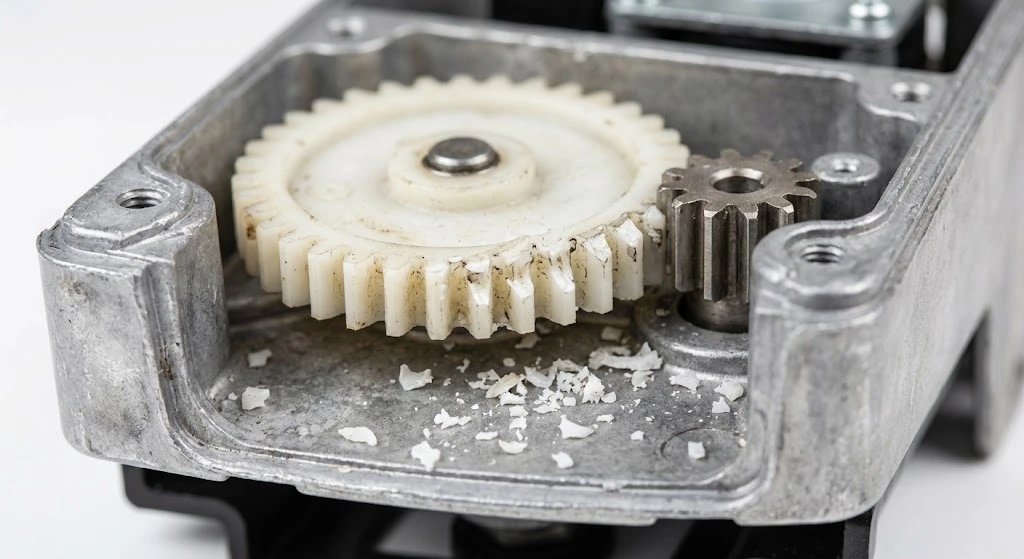

Stripped Motor Gear: The Most Overlooked Fix
Inside the LiftMaster motor head, a small nylon or plastic drive gear meshes with the worm gear on the motor shaft. This gear is designed to strip under excessive load — it’s a sacrificial part that protects the motor.
If the motor runs (you can hear it hum) but the chain doesn’t move at all, a stripped motor gear is the most likely cause. When you open the motor cover, you’ll find white or gray plastic shavings and a visibly chewed gear.
The good news: replacement gears cost $10–$30 and are one of the most common LiftMaster repairs. Many homeowners do it themselves with a screwdriver and a small socket set. The job takes 45–60 minutes.
Search Amazon for LiftMaster drive gear kit with your model number for the exact match. Common models like the 1245, 1346, and 8360W all have widely available gear kits.
When to Call a Professional
Most chain-related problems on LiftMaster openers are DIY-friendly. Call a professional if:
- The motor is completely silent (no hum at all) — the motor may have failed
- You replaced the gear kit and the problem returned within weeks — a motor bearing may be failing
- The opener is over 15 years old and repairs cost more than half the price of a new unit
- You’re uncomfortable working inside the motor housing with wiring present
A garage door technician typically charges $75–$150 for a service call plus parts. If the motor has failed, a new LiftMaster chain drive opener installed runs $250–$450 depending on the model and your area.
Preventing Chain Problems on LiftMaster Openers
A little maintenance goes a long way. Chain drive openers are reliable, but they need occasional attention to stay that way.
- Lubricate the chain every 6–12 months with white lithium grease or a product like LiftMaster’s own garage door lubricant. Don’t use WD-40 — it dries out and attracts dirt.
- Check chain tension annually. Tension loosens naturally over time as the chain stretches from use.
- Don’t force a stuck door. If the door is binding on the tracks, forcing the opener puts massive stress on the chain and sprocket. Fix the track issue first.
- Inspect the drive gear every few years if your opener gets heavy use (more than 4 cycles per day).
Frequently Asked Questions
Why does my LiftMaster hum but the chain doesn’t move?
A humming motor with no chain movement almost always means a stripped drive gear. The motor runs, but the internal nylon gear that connects it to the chain has worn or sheared. Replacement gears cost $10–$30 and are a straightforward DIY fix for most LiftMaster chain drive models.
How tight should a LiftMaster chain be?
LiftMaster specifies ½ inch of sag at the midpoint of the chain, measured from the bottom of the chain to the bottom of the rail. Less than that and the chain binds; more than that and it slips. Check and adjust tension annually as part of routine maintenance.
Can I use any chain to replace a LiftMaster chain?
Most LiftMaster chain drive openers use standard #41 roller chain. However, some models use #50 chain, which is slightly heavier. Check your owner’s manual or the label on the motor head for the correct specification before ordering. Using the wrong size chain will cause immediate problems.
How long does a LiftMaster chain drive opener last?
With routine maintenance, a LiftMaster chain drive opener typically lasts 10–15 years. High-use units (4+ cycles daily) may need gear or sprocket replacement around the 8-year mark. The chain itself can last the life of the opener if kept lubricated and properly tensioned.
Is it worth repairing an old LiftMaster or should I replace it?
If the repair costs less than 40% of a new opener and the unit is under 12 years old, repair is usually the better value. If the motor has failed or multiple components need replacement on an older unit, a new LiftMaster with a warranty makes more financial sense.
